What is the equipment and process for processing strontium carbonate ore from Celestite? Profile photo for Helen Jiang Helen Jiang

Celestite ultra-fine vertical roller mill can carry out the production process of ore milling in celestite processing strontium carbonate, with a fineness of 2500 mesh. It is a modern large-scale mineral powder production machinery and equipment for deep processing of celestite.

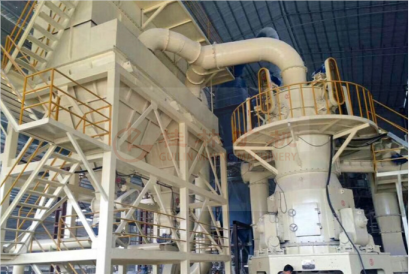

Introduction of GKLMX Micro Powder Mill Ultrafine Vertical Roller Mill

GKLMX series celestite ultra-fine vertical mill is a large-scale high-fine vertical mill developed by Guikuang based on the advanced technology at home and abroad and based on the GKLM vertical roller mill, which meets the development requirements of non-metallic mineral industry. Grinding equipment. The product fineness of GKLMX ultrafine vertical roller mill can be adjusted between 45um-7um. It adopts a secondary classification system, and the highest fineness can reach 3um. It can be widely used in the ultra-fine grinding of limestone, calcite, marble, heavy calcium, kaolin, barite, bentonite, pyrophyllite and other non-metallic mineral products.

【Single machine output】：1.2~45t/h

【Product fineness】：45um-7um，Secondary grading up to 3um.

Celestite ultra-fine vertical roller mill processing strontium carbonate process (ore milling process):

The first stage: celestite crushing

Large pieces of celestite are transported to the raw material warehouse by special vehicles, and then sent to the jaw crusher by forklifts/manually for crushing, and crushed to a size smaller than the feeding size (25-40mm) of the GKLMX celestite ultrafine mill.

The second stage: celestite feed

The celestite particles crushed by the crusher are lifted by the elevator to the storage hopper, and the storage hopper is discharged and then fed to the host evenly by the feeder

The third stage: the mill grinds celestite

After the celestite particles from the quantitative feeder enter the mill, the qualified products after many times of grinding are screened by the screening system to screen out the fine powder of the celestite powder particle size, and then enter the collector through the pipeline. The powder discharged through the discharge valve is the finished product, and the unqualified powder that cannot pass the powder separator falls into the main machine of the GKLMX vertical mill for re-grinding.

Stage 4: Finished Product Collection

The celestite powder stone powder enters the pulse dust collector through the ventilation duct connected by the celestite grinding mill, and the celestite powder stone powder enters the powder collector and waits for packaging. The air after pulse dust collection and purification flows into the blower through the residual air duct above the dust collector. The air path is circulating. Except for the positive pressure from the blower to the grinding chamber, the air flow in the rest of the pipeline flows under negative pressure, and the indoor sanitary conditions better.
